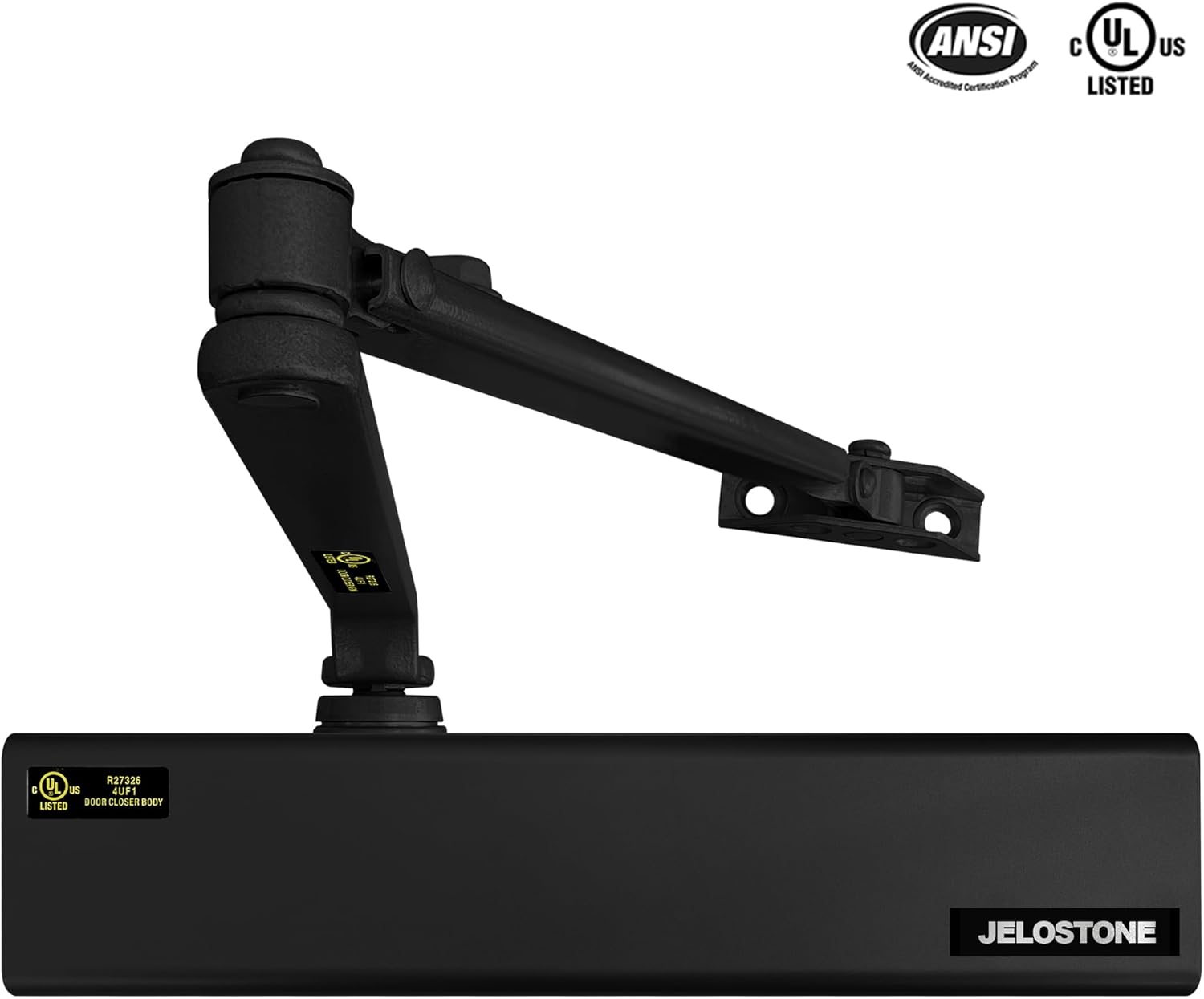

The 63Z0 door closer is a high-quality, hydraulic door closer designed for commercial applications, offering durability, accessibility, and safety. This article provides an in-depth look at the 63Z0 door closer, including its features, specifications, installation options, and ideal use cases.
Overview of the 63Z0 Door Closer
The 63Z0 is a commercial-grade hydraulic door closer engineered for heavy-duty doors, commonly found in high-traffic environments such as storefronts, banks, gas stations, and office buildings. Its robust rack-and-pinion design ensures reliable performance, capable of withstanding over 2 million door cycles, earning it an ANSI/BHMA Grade 1 certification. This makes it one of the most durable door closers available, ideal for demanding commercial settings.
Key Features
- Adjustable Closing and Latching Speeds: The 63Z0 features two separate regulating valves for controlling the main closing speed and latching speed, ensuring a smooth and controlled closing cycle without slamming.
- Backcheck Adjustment: An optional backcheck valve slows the door as it approaches the fully open position, protecting the door, frame, and surrounding structures from damage due to excessive force or high winds.
- Hold-Open Option: Available with a friction hold-open arm, allowing the door to remain open at angles between 90 and 180 degrees, ideal for deliveries or peak traffic times.
- ADA Compliance: The 63Z0 is factory preset to size 3, meeting Americans with Disabilities Act (ADA) requirements for accessible door operation, making it easier for individuals with varying physical abilities to navigate.
- Non-Handed Design: Suitable for both left- and right-handed doors, increasing installation flexibility.
- Durable Materials: Constructed with high-quality aluminum and iron, the 63Z0 is rust- and corrosion-resistant, ensuring longevity in various environmental conditions.
- Finishes: Available in aluminum and dark bronze anodized finishes to match aesthetic requirements.
Technical Specifications
- Mounting Options: Standard (regular) mount, top jamb, or parallel arm installation.
- Door Types: Compatible with commercial front entrance doors, storefront glass doors, hollow metal steel doors, and commercial solid core wood doors.
- Size Adjustment: Non-sized, adjustable from sizes 1 to 6, accommodating a wide range of door weights and sizes.
- Compliance: UL-listed, ADA compliant, and meets ANSI/BHMA Grade 1 standards.
- Hardware Accessories: Optional sex nuts for steel fire-rated doors and thru bolts with grommets for wood or aluminum storefront doors.
- Dimensions: Some models, such as those from Automatic Door and Hardware, are available in 12 in. x 3/4 in. configurations.
Installation Options
The 63Z0 door closer supports multiple mounting configurations, making it versatile for various door applications:
- Standard (Regular) Mount: Mounted on the pull side of the door, with the closer body attached to the door and the arm connected to the frame. This is common for outswing doors.
- Top Jamb Mount: The closer is mounted on the frame above the door, with the arm attached to the push side of the door. This is popular for storefront aluminum doors.
- Parallel Arm Mount: Mounted on the push side of the door, with the arm parallel to the frame, ideal for space-constrained applications or to reduce arm protrusion.
Installation is straightforward, with included instructions and mounting templates. The non-handed design eliminates the need for specific left- or right-handed units, simplifying the process.
Applications
The 63Z0 door closer is designed for high-traffic commercial environments, including:
- Storefront Entrances: Commonly used in gas stations, convenience stores, and banks for secure and smooth door operation.
- Office Buildings: Ensures privacy and security in meeting rooms, conference rooms, and reception areas.
- Educational Facilities: Installed in classrooms, lecture halls, and administrative offices to maintain safety and accessibility.
- Fire-Rated Doors: Complies with fire safety standards, ensuring doors close automatically to contain fire and smoke in emergencies.
Benefits
- Safety and Security: Automatically closes doors to prevent unauthorized access and maintain controlled entry points.
- Energy Efficiency: Ensures prompt door closure to minimize loss of conditioned air, reducing energy costs.
- Durability: High-quality materials and Grade 1 certification ensure long-lasting performance, even in abusive traffic conditions.
- Accessibility: ADA-compliant design supports barrier-free access for all users.
- Versatility: Adjustable settings and multiple mounting options make it suitable for a wide range of door types and environments.
Maintenance and Troubleshooting
To ensure optimal performance, regular maintenance is recommended:
- Lubrication: Periodically lubricate moving parts to reduce wear and ensure smooth operation.
- Inspection: Check for loose fittings, worn seals, or hydraulic fluid leaks. If leaks are detected, the closer may need replacement.
- Adjustments:
- Closing Speed: Adjust the closing speed valve clockwise to slow down or counterclockwise to speed up the door’s closing motion.
- Latching Speed: Modify the latching speed valve to ensure the door fully closes and latches securely.
- Backcheck: Adjust the backcheck valve to control resistance when the door is opened, preventing damage in high-wind or high-traffic areas.
- Final Swing: Fine-tune the final swing valve to control the last few degrees of closing for proper latching.
Common Issues and Solutions
- Door Slamming: Reduce closing speed by turning the closing speed valve clockwise.
- Door Not Closing Fully: Increase latching speed by turning the latching speed valve counterclockwise.
- Uneven Closing: Check for obstructions or misalignment and lubricate moving parts.
- Noise: Inspect for worn or damaged components and replace as needed.
Why Choose the 63Z0 Door Closer?
The 63Z0 stands out for its durability, versatility, and compliance with safety and accessibility standards. Its adjustable features allow customization to suit specific door requirements, while its robust construction ensures reliable performance in high-traffic environments. Trusted manufacturers like Automatic Door and Hardware and Guangdong LiPeng Glass Hardware offer high-quality 63Z0 closers, often backed by excellent customer support and design assistance.
Where to Purchase
The 63Z0 door closer is available from reputable suppliers such as:
For bulk orders or custom solutions, manufacturers like Zhaoqing Gaoyao Kensharp Hardware Co., Ltd., and Guangdong LiPeng Glass Hardware are reliable sources.
Conclusion
The 63Z0 door closer is a top-tier solution for commercial door applications, combining durability, safety, and accessibility. Its adjustable features, robust construction, and compliance with industry standards make it a preferred choice for storefronts, offices, and educational facilities. Regular maintenance and proper adjustments ensure long-term performance, making the 63Z0 an excellent investment for any commercial space.
